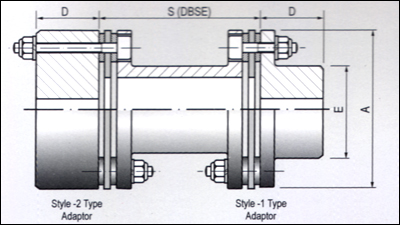

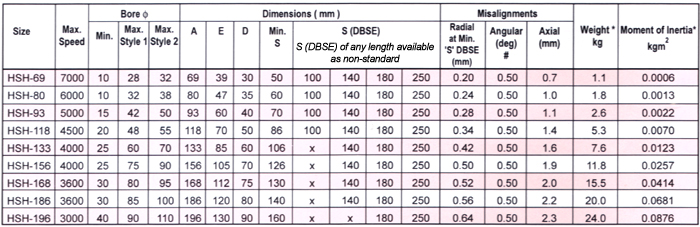

Fleximax Series HSH are ideally suitable for general industrial applications. The standard spacers or DBSE (Distance between Shaft Ends) are 100, 140, 180 and 250 mm. Non-standard spacer lengths of any size are available on request.

The fleximax coupling's precision components and piloting contribute to a low level of inherent potential unbalance. The all steel construction of the coupling can accept hostile environments and extreme temperatures from - 40°C to 280°C. This coupling is one of the most cost effective type as it does not require any maintenance. As there is no need for lubrication, there are no restrictions which prevail with other couplings that use grease or oil.

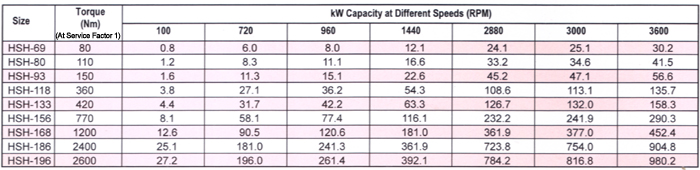

For couplings with larger torque ratings & shaft diameters, consult NENCO.
